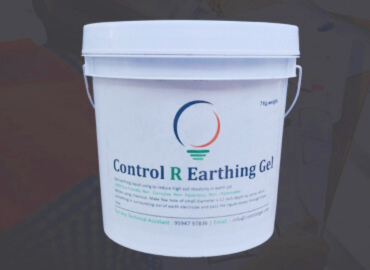

  • Control-R Gel – Advanced Earthing Enhancement Solution

  •

Product Overview

Control-R Gel is a high-performance, water-soluble earthing enhancement gel designed to reduce high ground resistance in existing earth pits without excavation.
It improves soil conductivity, strengthens electrode-to-soil contact, and ensures long-term earthing stability for industrial and infrastructure applications.

Control-R Gel is engineered to work effectively across all soil conditions and is suitable for existing earthing systems that show poor or unstable resistance values.

Why
?

Traditional earthing systems often lose efficiency due to soil conditions, moisture loss, corrosion, and aging backfill material.
Control-R Gel provides a simple, economical, and long-lasting solution to restore and enhance earthing performance without disturbing the existing setup.

Key Outcomes

Reduces earth resistance by 65%–90%

Improves fault current dissipation

Controls step & touch potential

Maintains low resistivity even in summer

Key Features

  • No Excavation Required

    Applied directly into existing earth pits.

  • High Viscosity Gel

    Remains in contact with soil for long durations; not washed away by groundwater.

  • Eco-Friendly & Non-Toxic

    Environmentally safe and metallurgically stable formulation.

  • Lower Surge Impedance

    Enables faster transient and lightning surge dissipation.

  • Long-Term Performance

    Provides 18–24 months of maintenance-free stability after application.

  • Excellent Soil Bonding

    High adsorption factor creates a homogeneous conductive layer.

How
Gel Works

Mixing Ratio

1 : 10 (Weight : Volume)
1 part Control-R Gel mixed with 10 parts clean water.

Application Process

  • Prepare the gel solution using the recommended ratio.

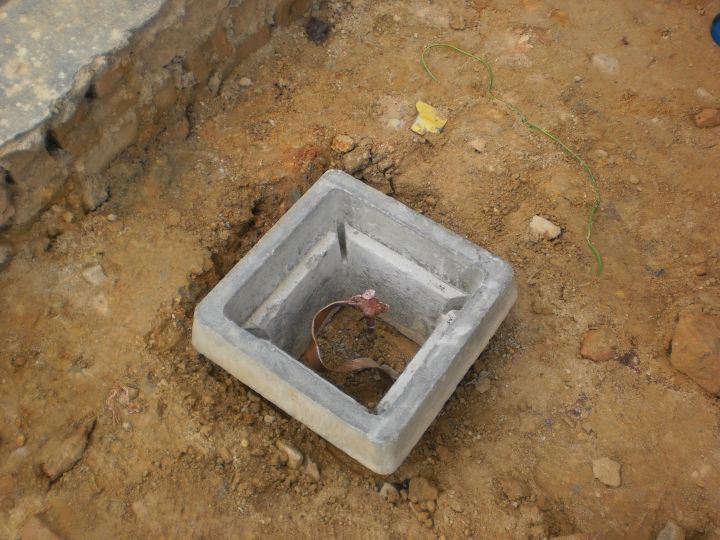

  • Pour the solution evenly into the existing earth pit.
  • The gel penetrates soil and backfill compound.
  • A conductive matrix forms around the electrode.
  • Earth resistance reduces and stabilizes over time.

Result

Shorter fault current paths
Reduced ground potential rise
Improved overall grounding safety

Performance Data

Field-Tested Resistance Reduction

Soil Type Type of Earthing Pit Before (Ω) After (Ω) Reduction
Hilly
Pipe & Plate
0.95
0.35
63%
Crick
Mesh
9.38
1.55
75%
Sandy
Vertical 4 Plate
9.45
1.20
62%
Rocky
Pipe Type
4.40
0.80
82%
Murrum
Pipe Electrode
9.50
4.00
87.5%

Actual results may vary depending on soil conditions and earthing design.

Benefits of Using Control-R Gel

  • No soil excavation required
  • Anti-corrosive and highly durable
  • Reduces seasonal resistance fluctuations
  • Increases electrode service life
  • Improves soil conductivity around electrode
  • Keeps earth pit resistance consistently low
  • No periodic maintenance required
  • Suitable for all earthing designs
  • Compatible with all soil conditions
  • Proven field performance

Standards & Compliance

Control-R Gel is designed in accordance with recognized electrical safety standards and guidelines:

IS 3043

IEEE

Indian Electricity (I.E.) Rules

RDSO

This makes it suitable for critical electrical installations.

Applications

Control-R Gel is widely used in

  • Power plants (thermal, solar, wind, nuclear)
  • Electrical substations & switchyards
  • Factories & manufacturing units
  • Railways & metro infrastructure
  • Data centers & IT parks
  • Commercial buildings & offices
  • Smart cities & residential projects
  • Electric vehicle charging infrastructure
